steel straight edge
DIN 875 00 Grade 75mm,125mm,175mm,200mm,225mm,300mm steel blade ruler Square Ruler Straight Edge Ruler Knife Edge Ruler
Range:75mm,100mm,125mm,150mm,175mm,200mm
Made of steel
0grade
According with GB/T6092
Special requirement can be satisfied upon request.
Due to different Monitor, the color may have difference
Due to hand measure ,Please allow 1-3% difference tolerance
Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding
75mm,125mm,175mm,200mm,225mm,300mm,400mm steel blade ruler Square Ruler Straight Edge Ruler
Range:75mm,100mm,125mm,150mm,175mm,200mm
Made of steel
0grade
According with GB/T6092
Special requirement can be satisfied upon request.
Due to different Monitor, the color may have difference
Due to hand measure ,Please allow 1-3% difference tolerance
Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding
75mm,125mm,175mm,200mm steel blade ruler
•High accuracy.
•Made of carbon steel
•0grade
•According with GB/T6092
•Special requirement can be satisfied upon request.

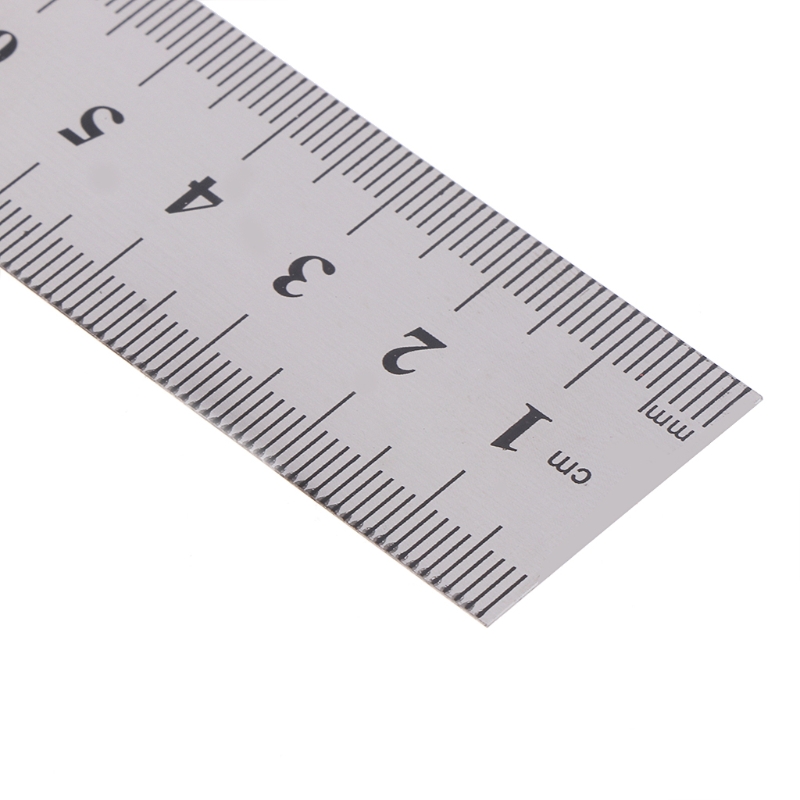

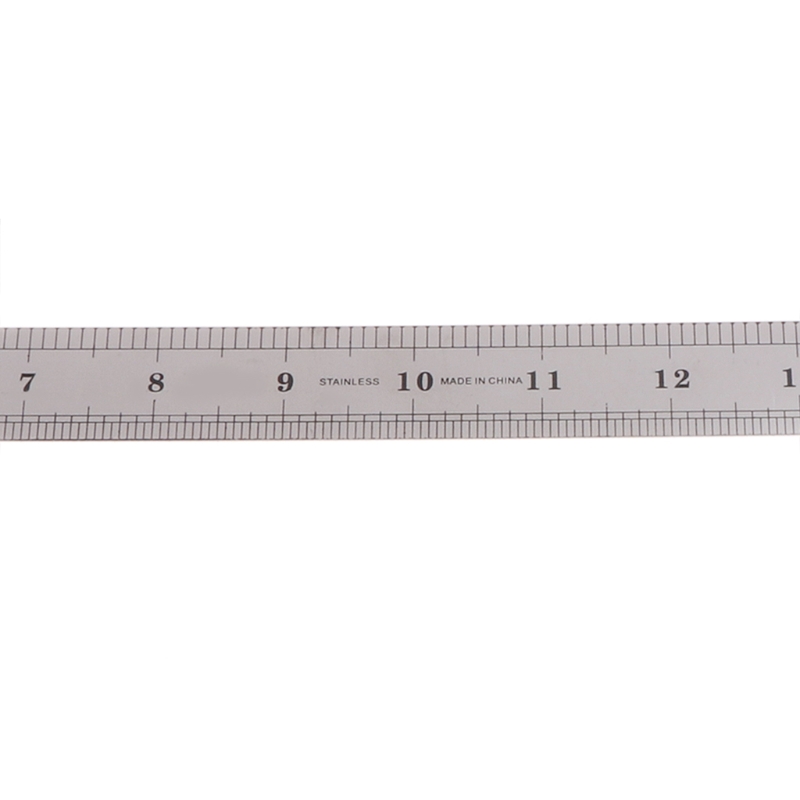

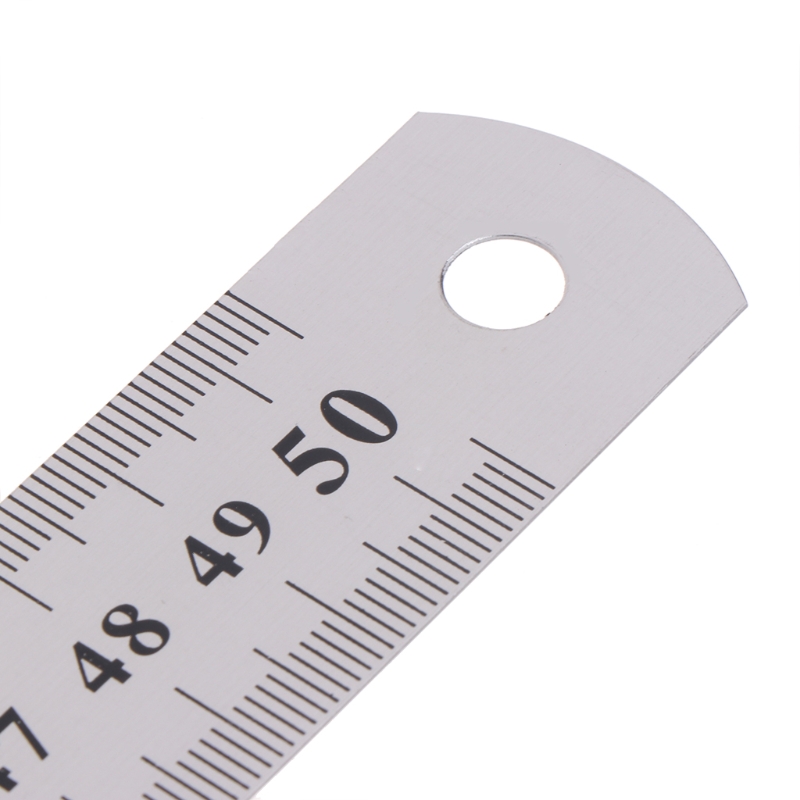

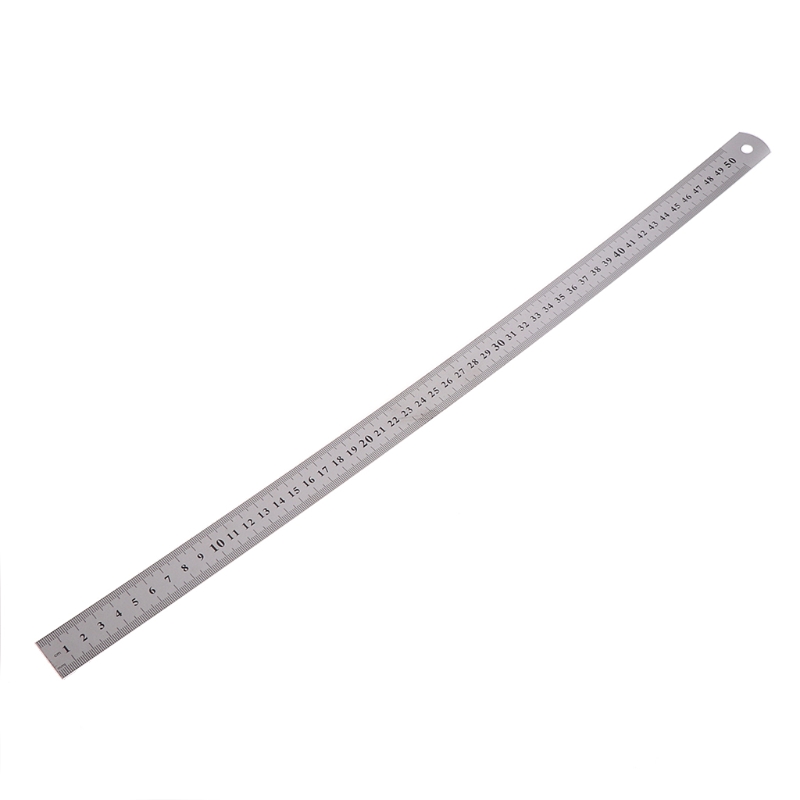

Lightweight Stainless Steel Ruler Rule Measuring Measure Straight Edge with Hole for Easy Hanging for Carpenter Students
OOTDTY
Brand new
Material: stainless steel
Color: as picture shows
Size: approx. 52.5*2.5cm /20.66''*0.98''(L*W)
Made of stainless steel material, can be use for long time.
Feature:
Ideal measuring tool for carpenter, sewer, students, etc.
Metric unit 0-50cm on one side and imperial unit 0-20 inch on the side.
With hole designed for easily hanging or string.
Helpful and practical in daily life use with mark on both side of the ruler.
Ultra thin, light weight, precise and professional made.
Package included:
1 x Ruler
DIN 875 00 Grade 75mm,125mm,175mm,200mm,225mm,300mm steel blade ruler Square Ruler Straight Edge Ruler Knife Edge Ruler
1 x StraightEdge
Material: Tool Steel
Length: 75/100/125/150/200mm/300mm
Accuracy: DIN 874/00
● For checking the edge, using the light-gap method. The blade is bevelled on both sides, with insulated handle.
● Come with a protective case.
● Usage: Test the flatness of plate, leveling ruler, machine tool working platform, guides and accuracyworkpiece.
1) Hold the knife edge perpendicular to the surface of the workpiece and check it in the longitudinal, lateral and diagonal directions
2) During the inspection, if the knife edge and the plane of the workpiece are weak and uniform, the flatness of the workpiece is acceptable; if the intensity of the incoming light is different, the plane of the workpiece is uneven. It can be inserted with the feeler at the edge of the knife and the workpiece. The error of the flatness can be determined according to the thickness of the feeler.
Attention:
remark: different model for choose
Remark:goods color ship by random
according to industrial standard
Due to different Monitor, the color may have difference
Due to hand measure,Please allow1-3% differencetolerance
Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding
Russian Navy Army Air Force Eagle Logo Rings Stainless Steel Black Straight edge Ring 10MM For Men Fashion Jewelry Gifts
Please notice:
Shipped time:When you finish payment,your order will be shipped out within12 business Hours.
EconomicsShipping Time:10-25 business days
Standart Shipping Time :8-20 business days
Express Shipping Time :1-3 business days.
Information:
Material: Stainless steel
316# Latest steel structure material
Better quality
Better corrosion resistance
Bathing and swimming can be worn,the product will Never Fade!Never Allergies!
DIN 875 00 Grade 75mm,125mm,175mm,200mm,225mm,300mm steel blade ruler Square Ruler Straight Edge Ruler Knife Edge Ruler
Range:75mm,100mm,125mm,150mm,175mm,200mm
Made of steel
0grade
According with GB/T6092
Special requirement can be satisfied upon request.
Due to different Monitor, the color may have difference
Due to hand measure ,Please allow 1-3% difference tolerance
Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding
75mm,125mm,175mm,200mm steel blade ruler
•High accuracy.
•Made of carbon steel
•0grade
•According with GB/T6092
•Special requirement can be satisfied upon request.
GREENER 90 Degree Angle Ruler Stainless Steel L Shape Ruler Double Sided Ruler Measuring Tool Metal Straight Woodworking Tools
100*20*5mm DIN874 Grade 00 High Accuracy Stainless Steel Straight Edge Ruler Straight Edge Blade Stainless Steel Blade Ruler
DIN 874 Grade 00 High Accuracy Stainless Steel Straight Edge Ruler Straight Edge Blade Rule Stainless Steel Blade ruler Square Ruler
Straight Edge Blade Ruler
Black Oxidized Steel Blade Ruler Square Ruler.
Size:
Length: 100mm Height:20mm Width:5mm
Straightness Accuracy: 2.4µm
Standard: DIN 874 Grade 00
Features & Functions
1) Made of Stainless Steel
2) Can meet DIN 874 Grade 00
3) All are Heat-treated
4) All are specially hardened and fine ground by hand.
5) HRC ≥ 55 HB
6) With high quality plastic for hold by hand
7) High Precision Measuring tools For flatness
| Size(L) | Straightenss | W | H |
| 50 | 2.2µm | 5 | 20 |
| 75 | 2.3µm | 5 | 20 |
| 100 | 2.4µm | 5 | 20 |
| 125 | 2.5µm | 5 | 20 |
| 150 | 2.6µm | 6 | 25 |
| 200 | 2.8µm | 6 | 25 |
| 250 | 3.0µm | 6 | 25 |
| 300 | 3.2µm | 8 | 35 |
| 400 | 3.6µm | 8 | 35 |
| 500 | 4.0µm | 10 | 45 |
| 600 | 4.2µm | 10 | 45 |
| 800 | 4.6µm | 10 | 50 |
| 1000 | 5.0µm | 10 | 50 |
0 Grade 75mm 125mm 175mm 200mm 225mm 300mm 400mm steel blade ruler Square Ruler Straight Edge Ruler Knife Edge Ruler
75mm,125mm,175mm,200mm steel blade ruler
•High accuracy.
•Made of carbon steel
•0grade
•According with GB/T6092
•Special requirement can be satisfied upon request.
INOX DIN874-00 Stainless Steel Straight Edge Ruler 75/100/125/150/200/300mm Accuracy Leveling Ruler Machine Tool Working Platfor
1 x StraightEdge
Material: Tool Steel
Length: 75/100/125/150/200mm
Accuracy: DIN 874/00
● For checking the edge, using the light-gap method. The blade is bevelled on both sides, with insulated handle.
● Come with a protective case.
● Usage: Test the flatness of plate, leveling ruler, machine tool working platform, guides and accuracyworkpiece.
1) Hold the knife edge perpendicular to the surface of the workpiece and check it in the longitudinal, lateral and diagonal directions
2) During the inspection, if the knife edge and the plane of the workpiece are weak and uniform, the flatness of the workpiece is acceptable; if the intensity of the incoming light is different, the plane of the workpiece is uneven. It can be inserted with the feeler at the edge of the knife and the workpiece. The error of the flatness can be determined according to the thickness of the feeler.
Attention:
remark: different model for choose
Remark:goods color ship by random
according to industrial standard
Due to different Monitor, the color may have difference
Due to hand measure,Please allow1-3% differencetolerance
Due to long shipping, the item may damage in transit, if the item damage, pls contact us firstly immediately before leave feedback, thanks for your understanding
